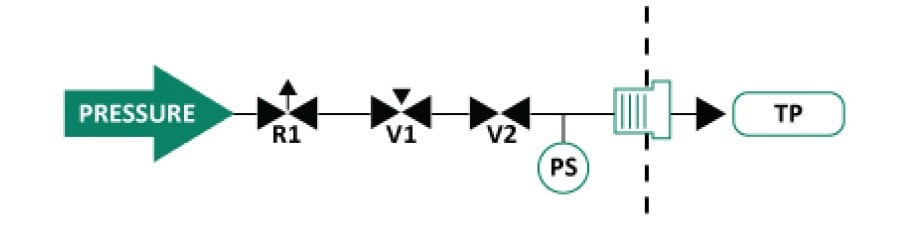

Enough air pressure is applied to the test part to produce the requisite motion or movement of the part component. The part is then vented through the two-way valve and the cycle is restarted.
Once the appropriate number of cycles has been completed, valve, V2 is closed and any leak will be detected using pressure sensor, PS.
