Burst Testing

2 MINUTES TO READ

The Problem

Products such as catheter balloons, one-way valves, and pressure relief devices often need to be tested to determine or verify the exact pressure at which the product either opens by design or ruptures due to pressure stressing.

Depending on the product, a burst test can be destructive or nondestructive.  The problem facing test engineers is coming up with a way to slowly increase pressure and then record the precise pressure at which the product opens (the peak-hold burst pressure).



The Solution

Uson test equipment conducts burst testing using one of two basic methods.  Sprint iQ testers can be outfitted with either manual flow control valves or with electronic regulators that supply the required ramping pressure. This Application Note describes how burst testing is accomplished using a manual regulator and a precision flow control.

When configured for burst testing, the Sprint iQ tester contains all the electronic and pneumatic controls to perform burst testing on a wide variety of products.



How Sprint iQ Works

  1. The product is attached to the test port and the test is started. (Figure 1)
  2. Valve V1 closes and valves V2 and V3 are opened to slowly pressurize the product through the precision flow control FC. Pressure in the product is measured by sensor S1.
  3. The instant the product ruptures or opens, the tester records the highest pressure attained and displays that pressure on the LCD run display.
  4. At the end of the test, pressure is released to atmosphere through valve V3 to ensure no pressure remains in the test circuit.
  5. Sprint iQ can also conduct pressure decay tests by opening valve V1 to fi ll the product. Valves V2 and V3 remain closed during the test. Air is trapped between the product and the sensor at the end of the test, pressure can be dumped at valve V3.

AN-2 Fig1

Pressure vs. Time Sequence

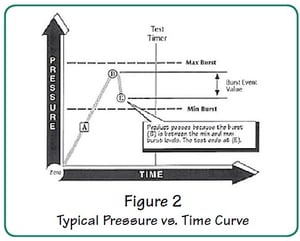

Pressure slowly ramps up through the flow control and pressurizes the product shown by curve A moving from zero and approaching the point at B (Figure 2).  Sprint iQ consistently captures pressure readings during the pressure increase. When the pressure suddenly drops more than the burst even value E, Sprint iQ stops the test and displays the maximum pressure attained. The pressure drop limit entered into the tester’s program is called the “Burst Even Value.” This value is a small pressure (such as 0.2 psig) and is not represented as a fixed point on the scale. For product to pass the burst test in our example, the part must burst at a point greater than the minimum burst level (lower dashed line) and at a pressure that is less than the maximum burst level (upper dashed line).

AN-2 Fig2

If Sprint iQ does not detect an even (pressure drop below the burst even value) within the established test time, the program times out and Sprint iQ shows NO BURST in the status box on the display.

If Sprint iQ detects an event (pressure drop below the burst event value) at a pressure that is below the minimum burst pressure, then it shows LO BURST in the status box on the display.



Applications

Sprint iQ burst testers are used for testing products such as one-way valves or devices that open rapidly under applied pressure. Consider using a Sprint iQ burst tester for applications in which the need to record a peak pressure is important. The test could be destructive or non-destructive. A downstream sensor option can be added to the burst machine to test products that have a second air connection. Please see the Application Note Titled Downstream Sensor Option for more information about testing with a second pressure sensor downstream from the product.

Sprint iQ Burst Tester Features

  • Records the peak burst pressure
  • Adjustable precision fl ow control is built-in
  • All components are in one small enclosure
  • Perfect for bench or automation
  • Small footprint of 8.5 by 15 inches
  • High pressure resolution
  • Easy to program and calibrate
  • Use also for pressure decay testing
